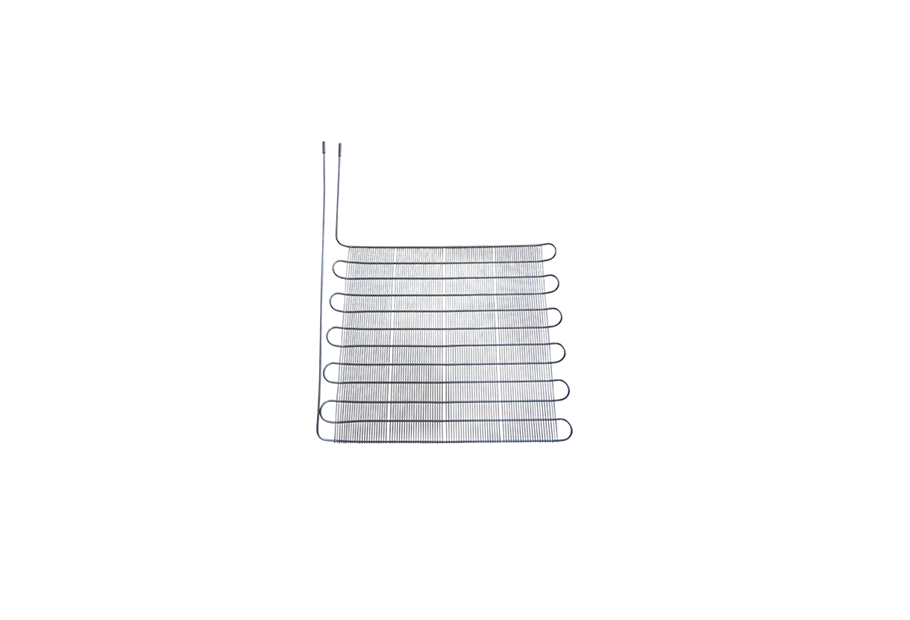

Bundy Tube Wire-on-Tube Condenser for Freezer/Refrigerator – 640×543×8mm (W×H×T)

Main Materials:

1. Bonded Tube: Φ4.76, Φ6, Φ6.35, Φ8, Φ9.52, Wall Thickness: 0.7mm

2. Low-Carbon Steel Wire: Φ1.0~1.6mm

3. Brackets: Steel Plate (SPCC), Thickness 0.6~1.5mm

4. Steel Plate: SPCC, Thickness 0.3~0.4mm

Structure:

1. Flat back-mounted wire-on-tube condenser

2. Bent or spiral wire used at the bottom of the tube condenser

3. Wrapped wire-on-plate condenser

Performance:

1. Electrophoretic coating on the surface to prevent corrosion

2. Internal cleanliness meets the requirements for R134A, CO₂, and cooling systems

3. Adaptable to different cooling capacity requirements

Main Production Process:

Tube Bending → Welding → Bracket Fixing → Inlet/Outlet Pipe Welding → Leak Testing → Coating → Water Injection & Bending → Inspection → Packaging

Technical Capabilities:

• Wire spacing ≥5mm

• Custom production available based on customer-provided drawings or samples

• We also provide design and production support for various custom condensers.
