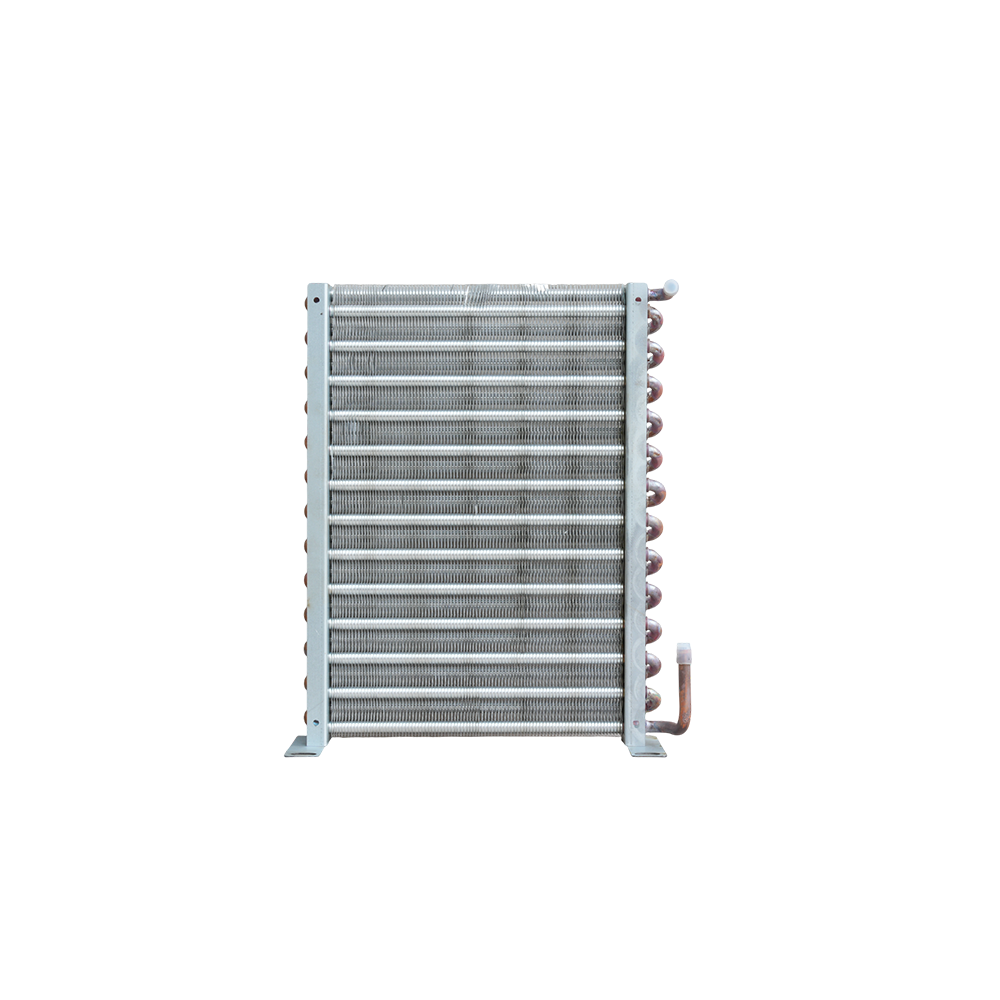

Bare Copper-Tube Aluminum-Fin Condenser (Non-Hydrophilic Coated Fin-and-Tube Heat Exchanger)
Applications:
-
Household Refrigerators and Chest Freezers – Suitable for traditional air-cooled freezers and large-capacity upright refrigerators. Used in scenarios where the primary function is heat dissipation without significant condensate water generation, thus no hydrophilic coating is required.
-
Small Ice Makers and Ice Cream Machines.
-
Portable Air Conditioners and Small Air-Cooled Condensing Units.
Product Name: Refrigeration Copper Tube Aluminum Fin Evaporator
Made of copper tubes and aluminum fins,
widely used in refrigerators, freezers, cold rooms, condensing units, dehumidifiers, ice makers, and slush machines.
Dimensions can be customized according to customer requirements.
Specifications:
· Materials: copper (TP2), aluminum, galvanized steel sheet
· Copper tube outer diameter: Φ7mm, Φ5mm; both smooth and inner-grooved tubes available
· Aluminum foil types: hydrophilic coated aluminum foil / bare aluminum foil
· Fin patterns: 5mm bridge fin/corrugated fin; 7mm louver fin/corrugated fin
· Fin pitch: Φ5 copper tube: 0.105mm; Φ7 copper tube: 0.105mm
· Tube pitch and row spacing: Φ7mm: 21×12.7mm; Φ5mm: 19.5×11.6mm, arranged in equilateral triangle pattern
· Pneumatic (nitrogen) leak test pressure: no less than 3.0 MPa
Optional fan types: micro fans, shaded-pole fans, or external-rotor fan motors.
We also offer customization services.
Compatible with refrigerants such as R134a, R22, R404a, R407c, etc.
If you have any questions, please feel free to contact us.
